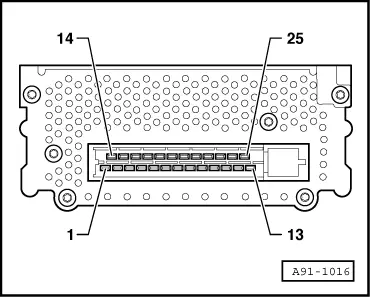

| 1 - | AF + (from telephone/navigation system) |
| 2 - | AF - (from telephone/navigation system) |
| 6 - | Signal earth (from radio) |
| 7 - | Rear right signal (from radio) |
| 8 - | Rear left signal (from radio) |
| 9 - | Front right signal (from radio) |
| 10 - | Front left signal (from radio) |
| 12 - | AF mute (from telephone) |
| 14 - | Bass loudspeaker (+) |
| 15 - | Bass loudspeaker (-) |
| 16 - | Front left loudspeaker (-) |
| 17 - | Front left loudspeaker (+) |
| 18 - | Front right loudspeaker (+) |
| 19 - | Front right loudspeaker (-) |
| 20 - | Rear left loudspeaker (+) |
| 21 - | Rear right loudspeaker (-) |
| 22 - | Front centre loudspeaker (+) |
| 23 - | Front centre loudspeaker (-) |
| 25 - | Switched positive (from radio) |
|
|
|
