A2

Removing and installing amplifier
Removing and installing amplifier
–  Switch off all electrical equipment.
–  Remove ignition key.
Removing:
–  Remove floor covering on front passenger's side → General body repairs, interior; Rep. Gr.70.
–  Detach cover over intermediate panel.

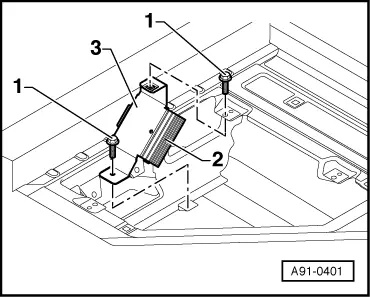

–  Screw out bolts -1- (8 Nm).
–  Take amplifier -2- together with mounting frame -3- out of recess.
–  Unplug connector.
Installing:
–  Install accordingly in reverse order of removal.
  A91-0401
