Removing and installing -B- pillar trim, 3-door vehicles
General Body Assembly Exterior (Repair groups 50, 55, 57, 58, 60, 63, 64, 66)
Trims

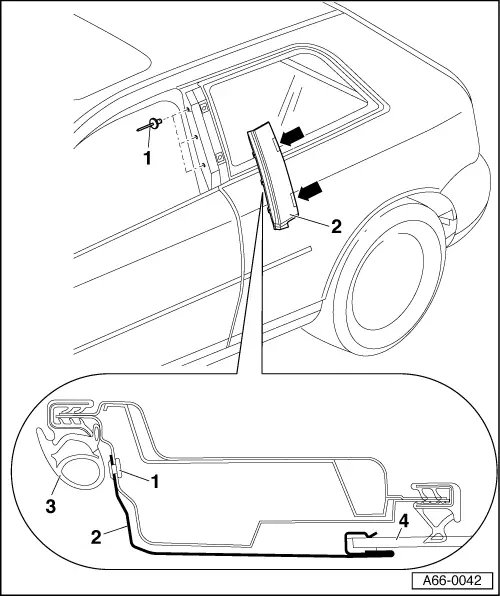

Removing and installing -B- pillar trim, 3-door vehicles
Hollow rivet
-B- pillar trim
◆
To remove, drill out rivet heads and drive out rivet stems
◆
When installing, fit trim onto vent window with clips as shown.
Door seal
◆
Pull off seal near trim before drilling out rivet heads.
Vent window
