A3 Mk1

General Body Assembly, Interior (Repair groups 68, 69, 70, 72, 74)
Trims
Removing and installing rear cross-panel trim

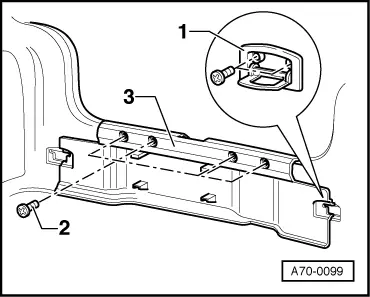

A70-0099
  • ‒ → Remove left and right fastening rings -1-.
  • ‒ Unscrew bolts -2- (4x).
  • ‒ Pull out rear panel trim -3-.
  • ‒ When installing, rubber seal around tailgate must be fitted over rear lateral panel trim.
