Gearbox identification
Gearbox identification
The manual gearbox 02C, four-wheel drive is installed as a 5-speed gearbox in the Audi A3 1997 ►. Allocation → Chapter.

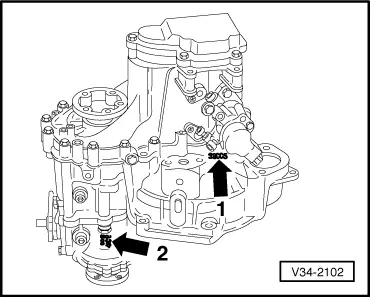

Location on gearbox
t  Code letters and date of manufacture of gearbox -arrow 1-
t  Manual gearbox 02C, four wheel drive -arrow 2-
  V34-2102

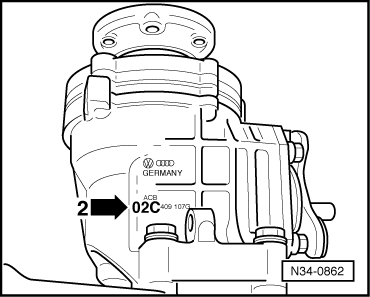

Manual gearbox 02C, four wheel drive -arrow 2-
  N34-0862

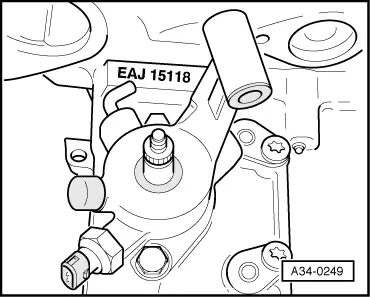

Code letters and date of manufacture of gearbox
  A34-0249
Example:EAJ15118
 Code lettersDayMonthYear “1998” of manufacture

Additional data are production-related.
  Note
The code letters of the gearbox are also given on the vehicle data stickers.
