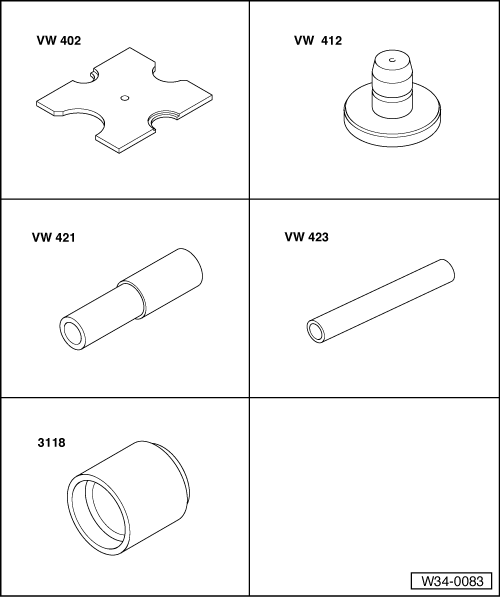

Special tools and workshop equipment required

• ◆ VW 402 Thrust plate
• ◆ VW 412 Press tool
• ◆ VW 421 Tube
• ◆ VW 423 Tube
• ◆ 3118 Tube

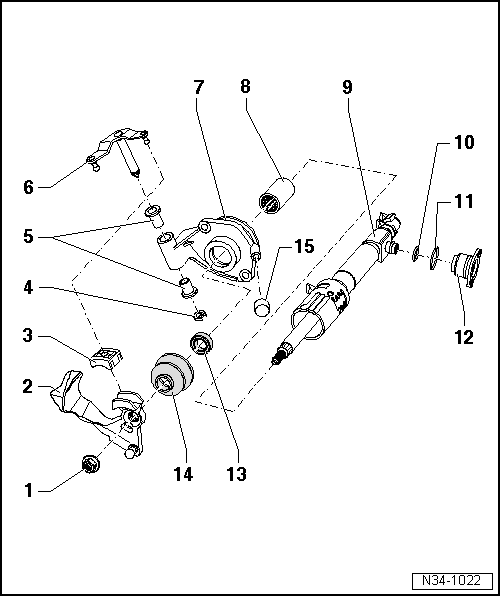

• Hexagon nut, 20 Nm
• ◆ Self-locking
• ◆ Always renew
• Gearbox selector lever
• ◆ Install so that the master spline aligns with selector shaft
• ◆ Can be replaced with the selector mechanism installed
• ◆ Installation position=>Page 34-13
• Shoe
• ◆ Clip into relay lever -item 6-
• Lock washer
• ◆ Removing => Fig.1
• Bush
• Relay lever
• ◆ Installation position=>Page 34-13
• Selector mechanism cover

• Ball sleeve
• ◆ For selector shaft
• ◆ Removing => Fig.2
• ◆ Pressing in => Fig.3
• Selector shaft
• O-ring
• ◆ Always renew
• O-ring
• ◆ Always renew
• End cover
• Oil seal
• ◆ Lever out with screwdriver
• ◆ Installing => Fig. 4
• Protective cap
• ◆ For selector shaft
• Cap
• ◆ For gearbox breather

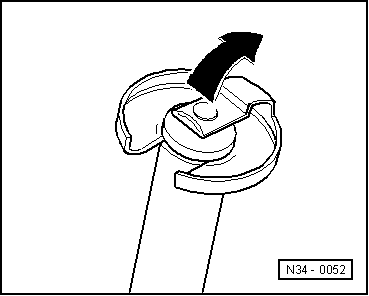

→ Fig.1    Removing relay lever lock washer

• ‒ Lift tab in direction of arrow.

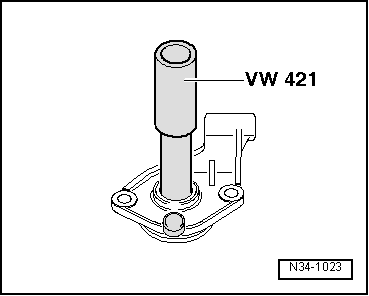

→ Fig.2    Pressing ball sleeve from selector mechanism cover

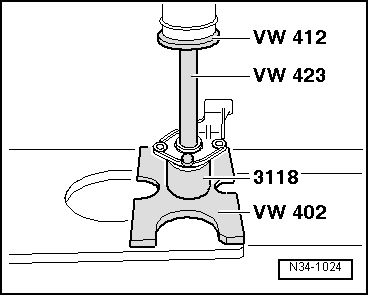

→ Fig.3    Pressing ball sleeve into selector mechanism cover

• ‒ Press ball sleeve to contact with press plate VW 402.

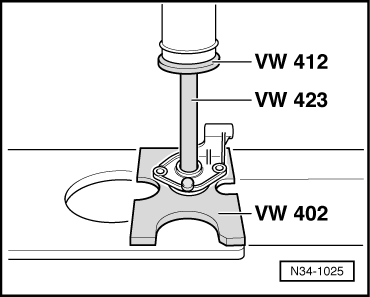

→ Fig.4    Installing oil seal onto stop
