Servicing accelerator linkage - Vehicles with accelerator pedal module
Servicing accelerator linkage - Vehicles with accelerator pedal module

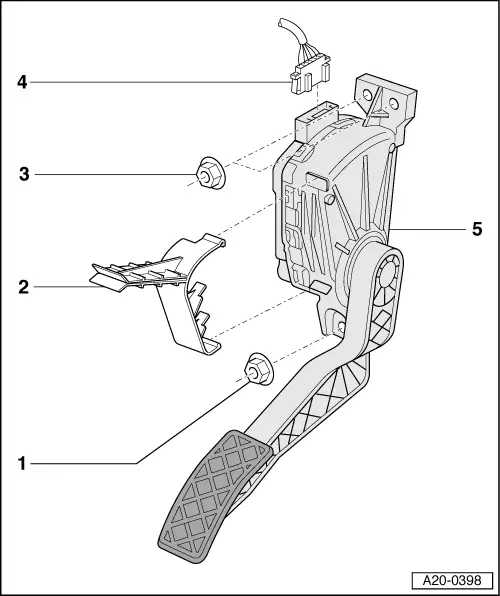

A20-0398
  • 10 Nm
  • Bracket
    • ◆ For driver's storage compartment
    • ◆ Engage in accelerator pedal module
  • 10 Nm
  • 6 pin connector
  • Accelerator pedal module
    • ◆ With accelerator pedal position sender -G79
    • ◆ Removing and installing
    • ◆ Incorporates kickdown switch on vehicles with automatic gearbox
