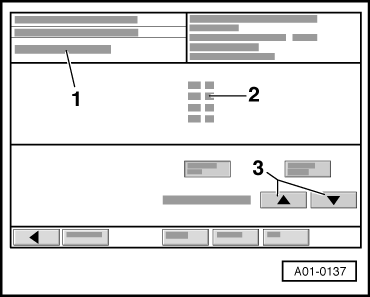

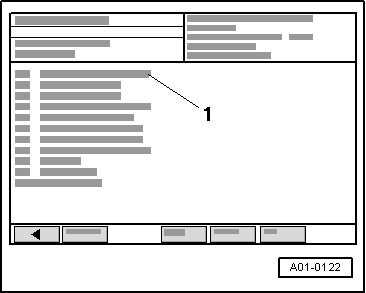

Reading measured value block (data block)
Readout specifications for temperature senders - vehicles with 96 kW engine

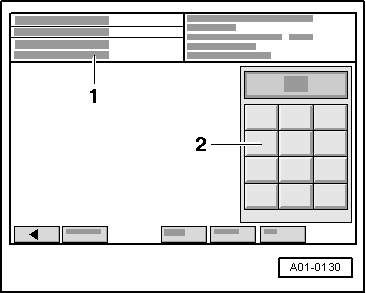

Display Group 007 with ignition on (engine cold and not running)
|
|
|
|
|
|
Display group 7
|
|
◂ Indicated on display
|
|
|
|
XXX.X °C
|
XXX %
|
XXX.X °C
|
XXX.X °C
|

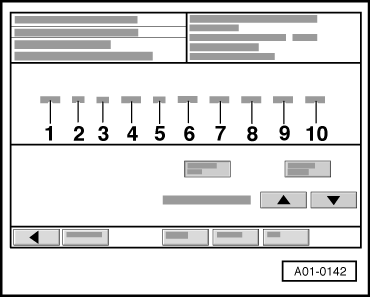

◂ Display zones 1 ... 4
|
|
|
|
|
|
|
|
Coolant temperature (at coolant temperature sender -G62)
▪ In case of a fault, the fuel temperature will be displayed
▪ If the fuel temperature display is defective as well, a constant temperature of -5.4°C will be displayed; test -G62 => Page 23-85
|
|
|
|
|
|
|
Intake manifold temperature (at intake manifold temperature sender -G72)
▪ In case of a fault, a constant temperature of 135.9 °C will be displayed;
▪ test -G72 => Page 23-100
|
|
|
|
|
|
Ignore
|
|
|
|
|
Fuel temperature (at fuel temperature sender -G81)
▪ In case of a fault, a constant temperature of 40.5 °C will be displayed; test -G81 => Page 23-104
|
|
|
|
|
|
Notes:
-
◆ No specifications can be given for temperature values.
-
◆ When the engine is cold, the temperatures of the fuel, intake manifold and coolant should be approximately the same as the ambient temperature. If one of the temperature readings differs noticeably, test the relevant sender.
|
