Running gearFinish balancer
Caution | Position vehicle on the sensor platforms (front wheels only on front-wheel drive vehicle, all four wheels on four-wheel drive vehicle) in order to balance the wheels. |
|
Note | Before working with a finish balancer the mechanic needs to have been instructed by the manufacturer of the balancer. |
| If you determine a residual imbalance greater than 20 grams when balancing the wheels, you should rotate the mounting position of the wheel on the hub. |
Note | t

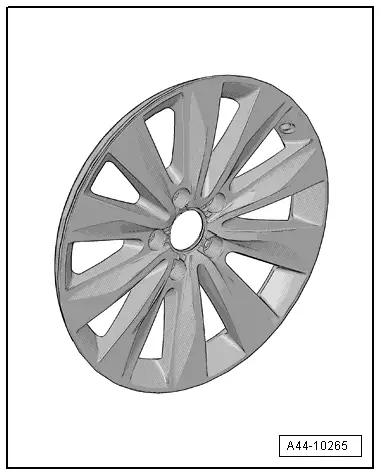

| On rims with bonded wheel trims, take care not to scratch the wheel trims. |
| t
| Wheel trims have a very sensitive surface. |
| t
| If a wheel trim is damaged, the rim must be renewed. |
|
|
|
| t
| The wheel trim cannot be renewed. |
| –
| Mark the point at which the imbalance is indicated. |
Caution | Bond on the balancing weights so that they do not touch the brake caliper or parts of the suspension. |
|
| –
| Unbolt the wheel and rotate its position on the hub so that the marking points downwards. |
Note | Important! The hub must not rotate during this procedure. |
| –
| First hand-tighten the lowest wheel bolt to about 30 Nm. |
| –
| Then tighten the remaining wheel bolts to about 30 Nm (in diagonal sequence). This process makes sure the wheel is centred properly on the hub. |
| –
| Check that the imbalance is less than 20 grams using the finish balancer. |
Note | The imbalance should always be less than 20 grams before you change the balance weight. |
| –
| If necessary, remove the wheel bolts again. |
| –
| Rotate the wheel relative to the hub once more, turning it one or two wheel bolt holes further. |
| –
| Tighten the wheel bolts using the method described above. |
Note | Do not try to reduce the imbalance using balance weights until the imbalance is less than 20 grams. |
| –
| Balance the wheels until the imbalance is less than 5 grams. |
| –
| Tighten wheel bolts to specified torque setting if you have not already done so. |
| –
| Always tighten wheel bolts to specified torque using a torque wrench! |
|
|
|
