A3 Mk2

Separating gear lever boot from gear knob
Separating gear lever boot from gear knob
–  Remove gear knob together with gear lever boot → Chapter.

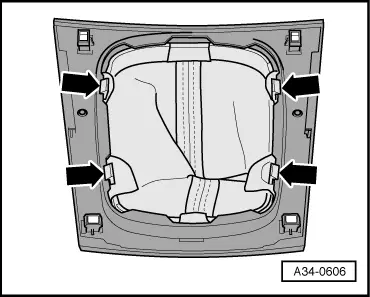

–  Unclip frame of gear lever boot from centre console cover -arrows-.
  A34-0606
–  Cut through the connecting piece with a sharp knife at the point marked -arrow-. Take care not to damage gear lever boot.
Installing
Installation is carried out in reverse sequence; note the following:

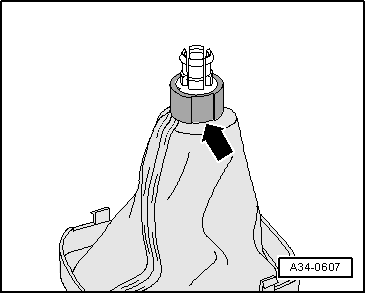

–  Fit gear lever boot on gear knob, using a new connecting piece -arrow-.
–  Install gear knob together with boot → Chapter.
  A34-0607
