A3 Mk2
Power transmission
5-speed manual gearbox 0A4
Gearbox mechanics,operation, construction,diff.
Transporting gearbox
Transporting gearbox
Transporting gearbox
Special tools and workshop equipment required
t

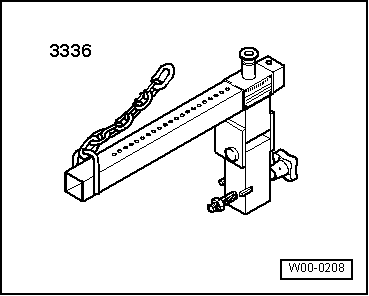

Gearbox lifting tackle -3336-
t

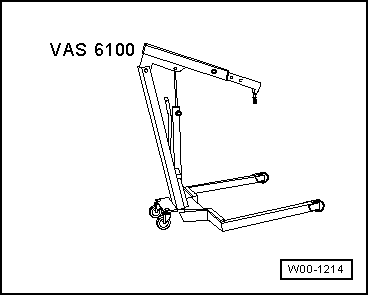

Workshop hoist -VAS 6100-
–

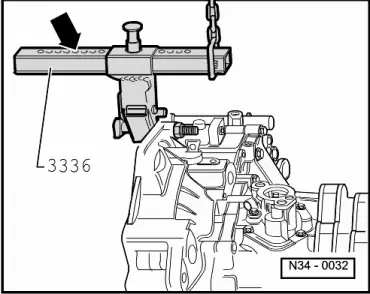

Bolt gearbox lifting tackle -3336- to clutch housing.
–
Set support arm on sliding bracket by means of locking pin
-arrow-
.
Number of holes visible = 5
–
Lift gearbox with workshop hoist -VAS 6100- and gearbox lifting tackle -3336-.
–
Set down gearbox as required (for example in transport container).
