Gearbox identification
Gearbox identification
The 6-speed manual gearbox 02Q (four-wheel drive) is fitted on the Audi A3 2004 > in conjunction with the 1.8 and 2.0 ltr. TFSI engines, the 2.0 ltr. TDI engine and the 3.2 ltr. engine.
Allocation → Chapter.

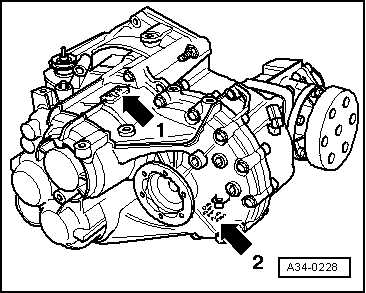

Location on gearbox
t  Code letters and date of manufacture -arrow 1-
t  Manual gearbox 02Q, four-wheel drive -arrow 2-
  A34-0228

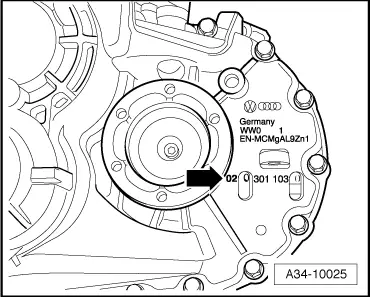

Manual gearbox 02Q, four-wheel drive -arrow 2-
  A34-10025
Code letters and date of manufacture of gearbox -arrow-
  A34-10031
Example:GUM04083
 IIII
 Code lettersDayMonthYear of manufacture (2003)

Additional data identify the factory where the unit was built.
  Note
The code letters for the gearbox are also given on the vehicle data stickers.
