A3 Mk2

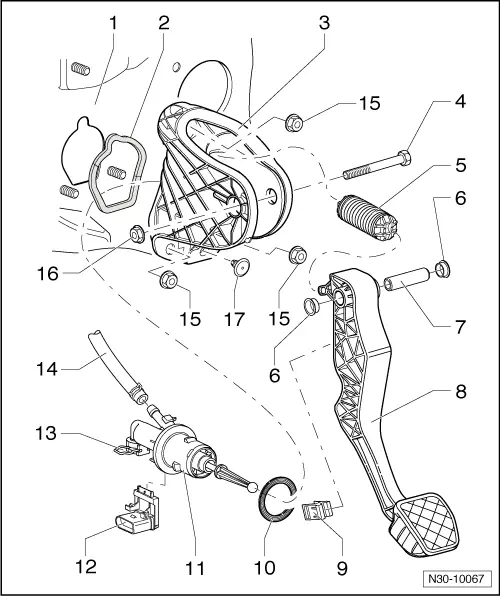

| Exploded view - pedal cluster, clutch master cylinder |
| 1 - | Bulkhead |
| q | With mounting for mounting bracket |
| 2 - | Gasket |
| q | Renew |
| q | Between mounting bracket and bulkhead |
| q | Self-adhesive |
| q | Bond onto mounting bracket |
| 3 - | Mounting bracket |
| q | For clutch pedal |
| q | Removing and installing → Chapter |
| 4 - | Bolt |
| 5 - | Over-centre spring |
| q | Removing and installing → Chapter |
| 6 - | Bearing bush |
| 7 - | Pivot pin |
| 8 - | Clutch pedal |
| q | Removing and installing → Chapter |
| 9 - | Retaining clip |
| q | For operating rod for clutch master cylinder |
| 10 - | Seal |
| q | Renew |
| q | Between clutch master cylinder and mounting bracket |
| 11 - | Clutch master cylinder |
| q | Removing and installing → Chapter |
| 12 - | Clutch position sender -G476- |
| q | Removing and installing → Chapter |
| q | Can be checked in “Guided Fault Finding”, using vehicle diagnostic, testing and information system -VAS 5051- |
| 13 - | Retaining clip |
| q | To remove and install pipe/hose assembly, pull out clip as far as it will go |
| 14 - | Supply hose |
| q | To brake fluid reservoir |
| q | Made of rubber or plastic, depending on version |
| q | Plastic supply hose with additional seals → Fig. |
| 15 - | Nut |
| q | For securing mounting bracket to bulkhead |
| q | 20 Nm |
| q | 3x |
| q | Self-locking |
| q | Renew |
| 16 - | Nut |
| q | 25 Nm |
| q | Self-locking |
| q | Renew |
| 17 - | Stop |
| q | For clutch pedal |

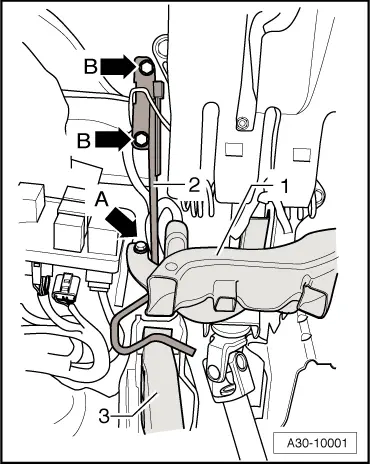

Note
|
|
