Audi Workshop Service and Repair Manuals

Code letters, allocation, transmission ratios, capacities

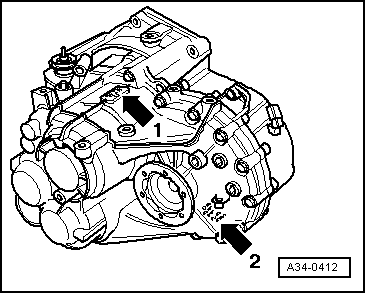

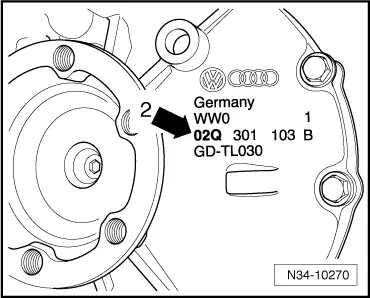

Manual gearbox		6-speed 02Q

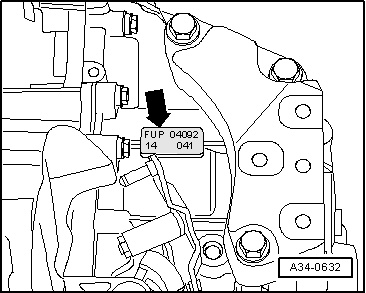

Code letters		FUP	GRF	GVT
Manufactured	from	02.03	02.03	02.05
	to	04.03	10.04	04.06
Allocation	Model	Audi A3 2004 ►	Audi A3 2004 ►	Audi A3 2004 ►
	Engine	2.0 ltr. - 103 kW TDI	2.0 ltr. -100 kW TDI 2.0 ltr. -103 kW TDI	2.0 ltr. - 147 kW FSI turbo
Ratio	Final drive I for 1st to 4th gear	60 : 18 = 3.333	69 : 20 = 3.450	71 : 18 = 3.944
Z2 : Z1 = i	Final drive II for 5th/6th gear and reverse gear	60 : 22 = 2.727	69 : 25 = 2.760	71 : 23 = 3.087
	1st gear	49 : 13 = 3.769	49 : 13 = 3.769	47 : 14 = 3.357
	2nd gear	48 : 23 = 2.087	48 : 23 = 2.087	48 : 23 = 2.087
	3rd gear	45 : 34 = 1.324	45 : 34 = 1.324	47 : 32 = 1.469
	4th gear	42 : 43 = 0.977	42 : 43 = 0.997	45 : 41 = 1.098
	5th gear	39 : 40 = 0.975	39 : 40 = 0.975	41 : 37 = 1.108
	6th gear	35 : 43 = 0.814	35 : 43 = 0.814	38 : 41 = 0.927
	Reverse gear	36 : 23 x 13 : 14 = 4.549	36 : 23 x 13 : 14 = 4.549	34 : 23 x 14 : 14 = 3.990
Overall ratio iov. in top gear		2.220	2.247	2.861
Gear oil capacity		2.3 litres
Clutch actuation		Hydraulic
The following data can be found in the → Electronic parts catalogue t  Gear oil specification t  Allocation of drive shaft flanges t  Allocation of clutch type

Manual gearbox		6-speed 02Q
Code letters		HDV	HVS	JLW
Manufactured	from	11.04	03.06	04.06
	to	04.06	04.06	05.07
Allocation	Model	Audi A3 2004 ►	Audi A3 2004 ►	Audi A3 2004 ►
	Engine	2.0 ltr. -100 kW TDI 2.0 ltr. -103 kW TDI	2.0 ltr. -125 kW turbo diesel	2.0 ltr. - 147 kW FSI turbo
Ratio	Final drive I for 1st to 4th gear	69 : 20 = 3.450	70 : 19 = 3.684	71 : 18 = 3.944
Z2 : Z1 = i	Final drive II for 5th/6th gear and reverse gear	69 : 25 = 2.760	70 : 24 = 2.917	71 : 23 = 3.087
	1st gear	49 : 13 = 3.769	49 : 13 = 3.769	47 : 14 = 3.357
	2nd gear	48 : 23 = 2.087	48 : 23 = 2.087	48 : 23 = 2.087
	3rd gear	45 : 34 = 1.324	45 : 34 = 1.324	47 : 32 = 1.469
	4th gear	42 : 43 = 0.977	34 : 37 = 0.919	45 : 41 = 1.098
	5th gear	39 : 40 = 0.975	37 : 41 = 0.902	41 : 37 = 1.108
	6th gear	35 : 43 = 0.814	28 :37 = 0.757	38 : 41 = 0.927
	Reverse gear	36 : 23 x 13 : 14 = 4.549	36 : 23 x 13 : 14 = 4.549	34 : 23 x 14 : 14 = 3.990
Overall ratio iov. in top gear		2.247	2.207	2.861
Capacity		2.3 litres
Clutch actuation		Hydraulic
The following data can be found in the → Electronic parts catalogue t  Gear oil specification t  Allocation of drive shaft flanges t  Allocation of clutch type

Manual gearbox		6-speed 02Q
Code letters		JLU	JMA	KDN
Manufactured	from	04.06	04.06	06.07
	to	05.07	05.07	11.07
Allocation	Model	Audi A3 2004 ►	Audi A3 2004 ►	Audi A3 2004 ►
	Engine	2.0 ltr. -100 kW TDI 2.0 ltr. -103 kW TDI	2.0 ltr. -125 kW turbo diesel	2.0 ltr. - 103 kW TDI
Ratio	Final drive I for 1st to 4th gear	69 : 20 = 3.450	70 : 19 = 3.684	69 : 20 = 3.450
Z2 : Z1 = i	Final drive II for 5th/6th gear and reverse gear	69 : 25 = 2.760	70 : 24 = 2.917	69 : 25 = 2.760
	1st gear	49 : 13 = 3.769	49 : 13 = 3.769	49 : 13 = 3.769
	2nd gear	48 : 23 = 2.087	48 : 23 = 2.087	48 : 23 = 2.087
	3rd gear	45 : 34 = 1.324	45 : 34 = 1.324	45 : 34 = 1.324
	4th gear	42 : 43 = 0.977	34 : 37 = 0.919	42 : 43 = 0.977
	5th gear	39 : 40 = 0.975	37 : 41 = 0.902	39 : 40 = 0.975
	6th gear	35 : 43 = 0.814	28 :37 = 0.757	35 : 43 = 0.814
	Reverse gear	36 : 23 x 13 : 14 = 4.549	36 : 23 x 13 : 14 = 4.549	36 : 23 x 13 : 14 = 4.549
Overall ratio iov. in top gear		2.247	2.207	2.247
Capacity		2.3 litres
Clutch actuation		Hydraulic
The following data can be found in the → Electronic parts catalogue t  Gear oil specification t  Allocation of drive shaft flanges t  Allocation of clutch type

Manual gearbox		6-speed 02Q
Code letters		KDQ	KDS	KNS
Manufactured	from	07.07	06.07	11.07
	to	11.07	11.07
Allocation	Model	Audi A3 2004 ►	Audi A3 2004 ►	Audi A3 2004 ►
	Engine	2.0 ltr. - 147 kW FSI turbo	2.0 ltr. - 125 kW TDI	2.0 ltr. - 103 kW TDI
Ratio	Final drive I for 1st to 4th gear	71 : 18 = 3.944	70 : 19 = 3.684	69 : 20 = 3.450
Z2 : Z1 = i	Final drive II for 5th/6th gear and reverse gear	71 : 23 = 3.087	70 : 24 = 2.917	69 : 25 = 2.760
	1st gear	47 : 14 = 3.357	49 : 13 = 3.769	49 : 13 = 3.769
	2nd gear	48 : 23 = 2.087	48 : 23 = 2.087	48 : 23 = 2.087
	3rd gear	47 : 32 = 1.469	45 : 34 = 1.324	45 : 34 = 1.324
	4th gear	45 : 41 = 1.098	34 : 37 = 0.919	42 : 43 = 0.977
	5th gear	41 : 37 = 1.108	37 . 41 = 0.902	39 : 40 = 0.975
	6th gear	38 : 41 = 0.927	28 :37 = 0.757	35 : 43 = 0.814
	Reverse gear	34 : 23 x 14 : 14 = 3.990	36 : 23 x 13 : 14 = 4.549	36 : 23 x 13 : 14 = 4.549
Overall ratio iov. in top gear		2.861	2.207	2.247
Capacity		2.3 litres
Clutch actuation		Hydraulic
The following data can be found in the → Electronic parts catalogue t  Gear oil specification t  Allocation of drive shaft flanges t  Allocation of clutch type

Manual gearbox		6-speed 02Q
Code letters		KNU	KNY	KXD
Manufactured	from	11.07	11.07	11.08
	to	05.09	05.09	05.09
Allocation	Model	Audi A3 2004 ►	Audi A3 2004 ►	Audi A3 2004 ►
	Engine	2.0 ltr. - 147 kW FSI turbo	2.0 ltr. - 125 kW TDI	1.8 ltr. - 118 kW FSI turbo
Ratio	Final drive I for 1st to 4th gear	71 : 18 = 3.944	70 : 19 = 3.684	70 : 19 = 3.684
Z2 : Z1 = i	Final drive II for 5th/6th gear and reverse gear	71 : 23 = 3.087	70 : 24 = 2.917	70 : 24 = 2.917
	1st gear	47 : 14 = 3.357	49 : 13 = 3.769	49 : 13 = 3.769
	2nd gear	48 : 23 = 2.087	48 : 23 = 2.087	48 : 23 = 2.087
	3rd gear	47 : 32 = 1.469	45 : 34 = 1.324	47 : 32 = 1.469
	4th gear	45 : 41 = 1.098	34 : 37 = 0.919	37 : 34 = 1.088
	5th gear	41 : 37 = 1.108	37 . 41 = 0.902	41 : 37 = 1.108
	6th gear	38 : 41 = 0.927	28 :37 = 0.757	31 :34 = 0.912
	Reverse gear	34 : 23 x 14 : 14 = 3.990	36 : 23 x 13 : 14 = 4.549	36 : 23 x 13 : 14 = 4.549
Overall ratio iov. in top gear		2.861	2.207	2.659
Capacity		2.3 litres
Clutch actuation		Hydraulic
The following data can be found in the → Electronic parts catalogue t  Gear oil specification t  Allocation of drive shaft flanges t  Allocation of clutch type

Manual gearbox		6-speed 02Q
Code letters		KXX	KXZ	KZS
Manufactured	from	05.09	05.09	05.09
	to
Allocation	Model	Audi A3 2004 ►	Audi A3 2004 ►	Audi A3 2004 ►
	Engine	2.0 ltr. - 103 kW TDI	2.0 ltr. - 125 kW TDI	2.0 ltr. - 147 kW FSI turbo
Ratio	Final drive I for 1st to 4th gear	69 : 20 = 3.450	70 : 19 = 3.684	71 : 18 = 3.944
Z2 : Z1 = i	Final drive II for 5th/6th gear and reverse gear	69 : 25 = 2.760	70 : 24 = 2.917	71 : 23 = 3.087
	1st gear	49 : 13 = 3.769	49 : 13 = 3.769	47 : 14 = 3.357
	2nd gear	48 : 23 = 2.087	48 : 23 = 2.087	48 : 23 = 2.087
	3rd gear	45 : 34 = 1.324	45 : 34 = 1.324	47 : 32 = 1.469
	4th gear	42 : 43 = 0.977	34 : 37 = 0.919	45 : 41 = 1.098
	5th gear	39 : 40 = 0.975	37 . 41 = 0.902	41 : 37 = 1.108
	6th gear	35 : 43 = 0.814	28 :37 = 0.757	38 : 41 = 0.927
	Reverse gear	36 : 23 x 13 : 14 = 4.549	36 : 23 x 13 : 14 = 4.549	34 : 23 x 14 : 14 = 3.990
Overall ratio iov. in top gear		2.247	2.207	2.861
Capacity		2.3 litres
Clutch actuation		Hydraulic
The following data can be found in the → Electronic parts catalogue t  Gear oil specification t  Allocation of drive shaft flanges t  Allocation of clutch type

Manual gearbox		6-speed 02Q
Code letters		LNP
Manufactured	from	05.09
	to
Allocation	Model	Audi A3 2004 ►
	Engine	1.8 ltr. - 118 kW FSI turbo
Ratio	Final drive I for 1st to 4th gear	70 : 19 = 3.684
Z2 : Z1 = i	Final drive II for 5th/6th gear and reverse gear	70 : 24 = 2.917
	1st gear	49 : 13 = 3.769
	2nd gear	48 : 23 = 2.087
	3rd gear	47 : 32 = 1.469
	4th gear	37 : 34 = 1.088
	5th gear	41 : 37 = 1.108
	6th gear	31 :34 = 0.912
	Reverse gear	36 : 23 x 13 : 14 = 4.549
Overall ratio iov. in top gear		2.659
Capacity		2.3 litres
Clutch actuation		Hydraulic
The following data can be found in the → Electronic parts catalogue t  Gear oil specification t  Allocation of drive shaft flanges t  Allocation of clutch type
