A3 Mk2

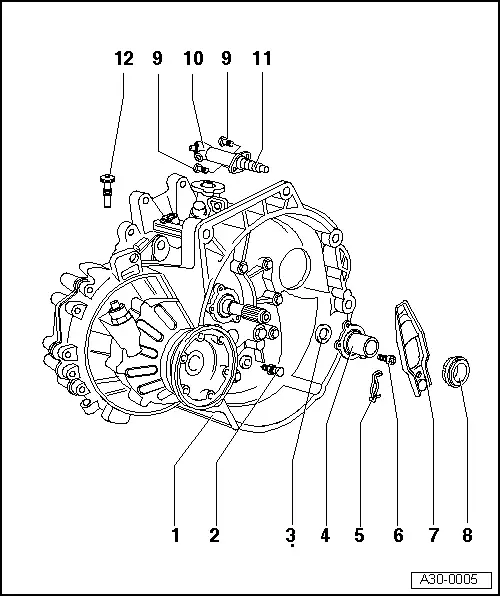

| Exploded view - clutch release mechanism |
| 1 - | Gearbox |
| 2 - | Ball-head pin |
| q | 25 Nm |
| q | Remove existing grease from contact surface of release lever |
| q | Lubricate with grease for clutch plate splines -G 000 100- |
| 3 - | Input shaft oil seal |
| q | Pressed into guide sleeve |
| q | Renewing → Item |
| 4 - | Guide sleeve |
| q | With vulcanised O-ring and oil seal for input shaft → Item |
| q | Renew guide sleeve if O-ring is damaged |
| q | Lubricate guide sleeve in area of release bearing with grease for clutch plate splines -G 000 100- |
| 5 - | Retaining spring |
| q | Secure to clutch release lever |
| 6 - | Socket head bolt |
| q | 20 Nm |
| 7 - | Clutch release lever |

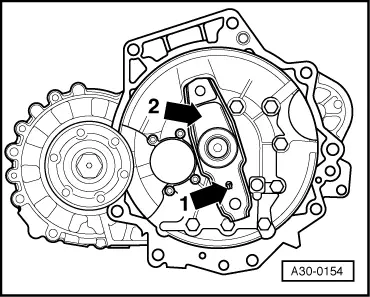

| q | Removing and installing together with release bearing → Fig. |
| q | Lubricate surface which contacts ball-head pin with grease for clutch plate splines -G 000 100- |
| 8 - | Release bearing |
| q | Do not wash out bearing; wipe clean only |
| q | Renew bearing if noisy |

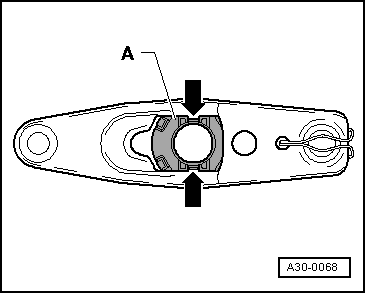

| q | Detaching/attaching on release lever → Fig. |
| q | Lubricate surface which contacts release lever with grease for clutch plate splines -G 000 100- |
| 9 - | Bolt |
| q | Tightening torque → Item |
| q | 2x |
| 10 - | Clutch slave cylinder |
| q | Removing and installing → Chapter |
| 11 - | Plunger |
| q | Lubricate end of plunger with grease for clutch plate splines -G 000 100- |
| 12 - | Assembly bolt |
| q | Secures the clutch release lever while installing gearbox |
| q | Unscrew after gearbox has been installed |
Note| If the assembly bolt ( → Item) is not available, an M8 x 35 bolt can be used instead. |
|
|
