A3 Mk2

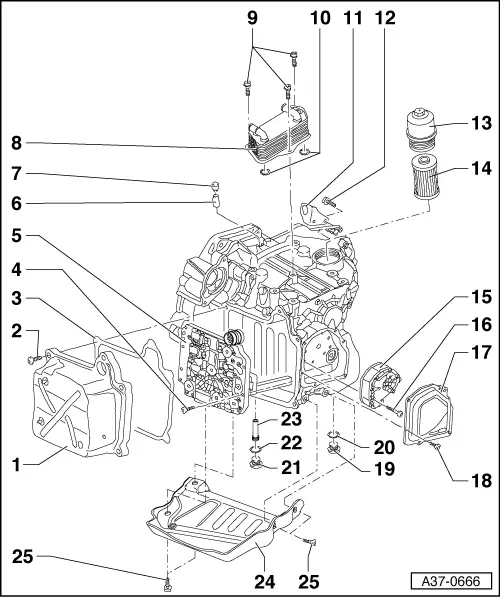

| Exploded view - gear oil cooler and gear oil filter |
Note| -Items 1 … 7, 15 … 18, 24, 25- can be disregarded here. For description see → Chapter „Exploded view - oil pan, mechatronic unit, gear oil pump“. |
| 8 - | Gear oil cooler |
| → Chapter „Removing and installing gear oil cooler“ |
| 9 - | Bolt |
| q | Renew |
| q | 20 Nm + 45° |
| 10 - | O-rings |
| q | Renew |
| 13 - | Housing |
| q | For gear oil filter |
| q | 20 Nm |
| q | → Chapter „Removing and installing gear oil filter“ |
| q | O-ring on housing |
| q | Renew O-ring |
| 14 - | Filter element |
| q | For gear oil filter |
| q | Removing and installing → Chapter „Removing and installing gear oil filter“ |
| q | With O-ring on intake neck |
| q | Renew O-ring |
