A3 Mk2

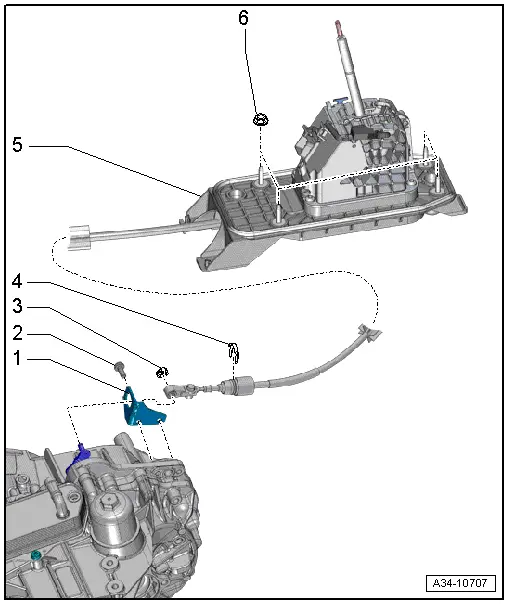

| Exploded view - shift mechanism (vehicles from 11.2009 onwards) |
Note| Lubricate all bearings and moving surfaces with polycarbamide grease -G 052 142 A2-. |
| 1 - | Cable support bracket |
| q | For selector lever cable |
| 2 - | Bolt |
| q | Secures cable support bracket to gearbox |
| q | 2x |
| q | 23 Nm |
| 3 - | Securing clip |
| q | Secures selector lever cable to gearbox selector lever |
| q | Renew |
| 4 - | Retaining clip |
| q | Secures selector lever cable to cable support bracket |
| q | Renew |
| 5 - | Shift unit |
| q | → Chapter „Operating manual release for selector mechanism from position P (vehicles from 11.2009 onwards)“ |
| q | Removing and installing → Chapter |
| q | With integrated printed circuit for selector mechanism (selector lever -E313-), do not touch |
| q | Incorporates the following components: selector lever sensors control unit -J587- with selector lever -E313-, tiptronic switch -F189-, selector lever locked in position P switch -F319- and selector lever lock solenoid -N110- (do not touch these components) |
| q | Can be checked via Guided Fault Finding function → vehicle diagnostic tester. |
| q | Selector lever sensors control unit -J587- with selector lever -E313-, tiptronic switch -F189-, selector lever locked in position P switch -F319- and selector lever lock solenoid -N110- can only be renewed together with shift unit as a complete unit → Chapter |
| q | Selector lever cable can only be renewed together with complete shift unit → Chapter |
| q | → Chapter „Checking and adjusting selector lever cable“ |
| q | Do not grease selector lever cable |
| 6 - | Nut |
| q | Secures selector mechanism to body |
| q | 4x |
| q | 8 Nm |
