Rear final drive identification
Rear final drive identification
The rear final drive 02D/0AV is used in connection with the manual gearbox 02Q (four-wheel drive) and the direct shift gearbox 02E (four-wheel drive).
Allocation → Chapter.

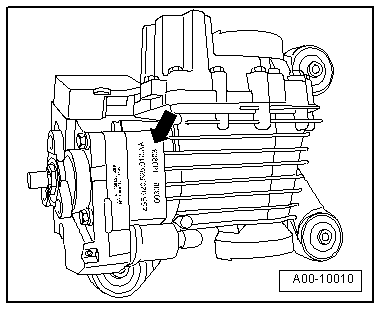

Location on rear final drive
t  Part number, code letters and date of manufacture of rear final drive -arrow-
  A00-10010

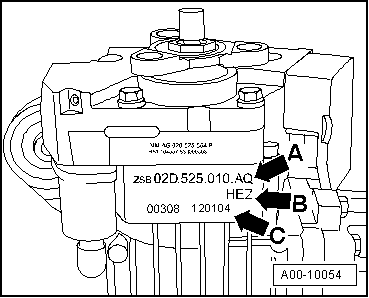

Rear final drive 02D
-Arrow A- Part number of rear final drive
-Arrow B- Code letters of rear final drive
t  If the code letters are not known, allocation can be performed via the Parts No. → Parts catalogue.
-Arrow C- Date of manufacture date of rear final drive:
Example:
  A00-10054
02D.525.010.AQHEZ120104
IIIII
IIIII
Part No.Code lettersDayMonthYear of manufacture
-2004-

Additional data are production-related.

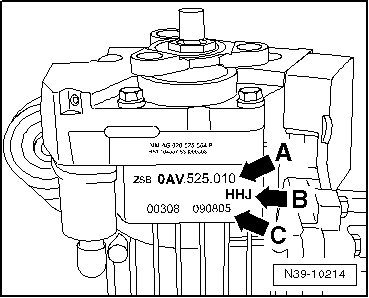

Rear final drive 0AV
-Arrow A- Part number of rear final drive
-Arrow B- Code letters of rear final drive
t  If the code letters are not known, allocation can be performed via the Parts No. → Parts catalogue.
-Arrow C- Date of manufacture date of rear final drive:
Example:
  N39-10214
HHJ090805
IIII
IIII
Code lettersDayMonthYear of manufacture
-2005-

Additional data are production-related.
