| Checking hydraulic valve compensation elements |
Note | t
| The hydraulic compensation elements cannot be serviced. |
| t
| Irregular valve noises when starting engine are normal. |
| Special tools and workshop equipment required |
| –
| Start engine and run until radiator fan has started up once. |
| –
| Increase engine speed to approx. 2500 rpm for 2 minutes (perform road test if necessary). |
Note | If irregular valve noise disappears but repeatedly re-occurs when travelling short distances, renew oil retention valve. The oil retention valve is located in the oil filter bracket → Item. |
| –
| If the compensation elements are still noisy, locate the defective compensation element as follows: |
| –

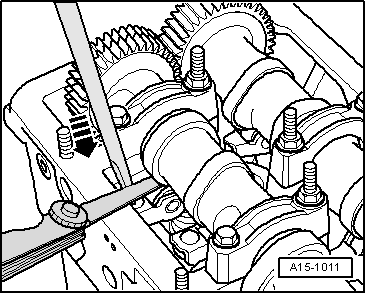

| Rotate crankshaft by turning bolt for toothed belt sprocket until cam of supporting element to be tested is facing upwards. |
|
|
|
