Checking combination valves for secondary air system for proper operation and leakage - engine code CBRA
Checking combination valves for secondary air system for proper operation and leakage - engine code CBRA
Checking combination valves for secondary air system for proper operation and leakage - engine code CBRA
Special tools and workshop equipment required
t

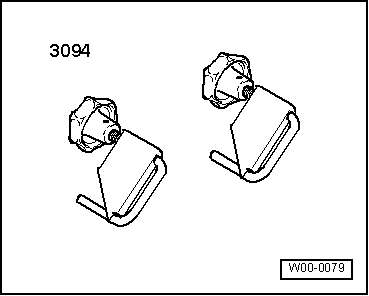

Hose clamps, up to Ø 25 mm -3094- for combination valve for secondary air system (left-side)
t

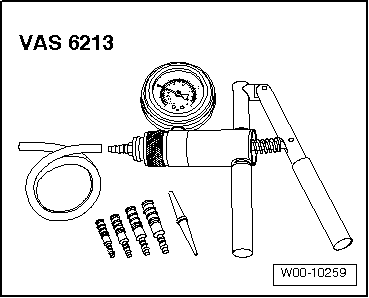

Hand-operated vacuum pump -VAS 6213-
Procedure
l
Vacuum hoses and hose connections do not leak.
l
Vacuum hoses are not clogged.
Combination valve for secondary air system (left-side):
–
Disconnect air pipe
-arrows-
.
Note
Disregard
-item 1-
.
–

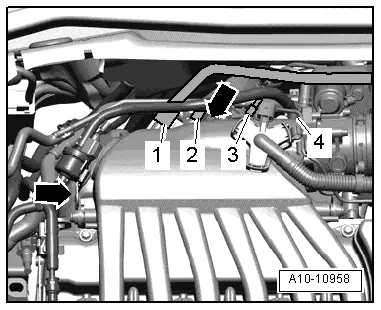

Disconnect vacuum hoses
-1, 2, 4-
at rear of intake manifold.
–
Unbolt hose bracket from intake manifold
-arrows-
and move clear to rear, with hoses attached.
Note
Disregard
-item 3-
.
–

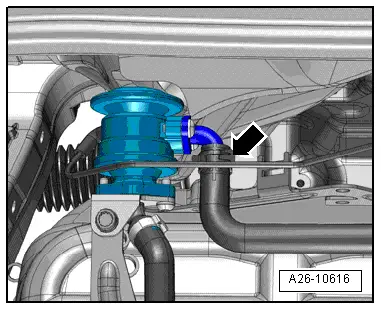

Disconnect secondary air hose
-arrow-
, move hose clear towards the top and clamp off using hose clamp -3094-.
–
Disconnect vacuum hose from combination valve for secondary air system (left-side).
–
Connect hand-operated vacuum pump -VAS 6213- to vacuum connection on combination valve for secondary air system.
–
Disconnect secondary air hose at the position marked with an
-arrow-
.
–
Blow lightly into secondary air hose with your mouth (do not use compressed air).
l
The combination valve for secondary air system should be closed; it should not be possible to blow through the hose.
–
Operate hand-operated vacuum pump to produce a vacuum.
l
The combination valve for secondary air system should open; it should now be possible to blow through the hose.
–
Renew combination valve for secondary air system (left-side) if valve does not react as described
→ Chapter
.
Combination valve for secondary air system (right-side):
–
Remove combination valve for secondary air (right-side)
→ Chapter
.
–
Connect hand-operated vacuum pump -VAS 6213- to vacuum connection
-1-
on combination valve (right-side) for secondary air system.
–
Connect a suitable test hose
-2-
onto combination valve for secondary air system.
–
Blow lightly into test hose with your mouth (do not use compressed air).
l
The combination valve for secondary air system should be closed; it should not be possible to blow through the hose.
–
Operate hand-operated vacuum pump to produce a vacuum.
l
The combination valve for secondary air system should open; it should now be possible to blow through the hose.
–
Renew combination valve for secondary air system (right-side) if valve does not react as described
→ Chapter
.
Assembling
Installation is carried out in the reverse order; note the following:
–
Install combination valve for secondary air (right-side)
→ Chapter
.
