WARNING | The fuel system is pressurised. The fuel pressure in the high-pressure part of the injection system must be reduced to a residual pressure prior to opening; for procedure see → Chapter. |
| The connection must be opened immediately after reducing the pressure; wrap a cloth around the connection and allow the residual pressure (approx. 6 bar) to dissipate. |
|
| Note the following if testers and measuring instruments have to be used during a road test: |
WARNING | t
| Test equipment must always be secured on the rear seat and operated from that position by a second person. |
| t
| If test and measuring instruments are operated from front passenger's seat and the vehicle is involved in an accident, the person sitting in this seat could be seriously injured when the airbag is triggered. |
|
| To avoid any risk of injuries to persons and/or damage to the fuel injection and ignition system, always observe the following safety precautions. |
| t

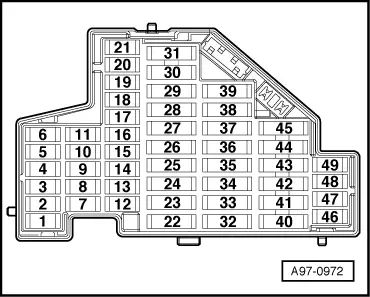

| If the battery is not disconnected, fuse No. 27 for fuel pump control unit -J538- must be removed as a precautionary measure before opening the fuel system, because the fuel pump will otherwise be activated by the contact switch on the driver's door. |
| t
| Persons wearing a cardiac pacemaker must at all times maintain a safe distance from high-voltage components such as the ignition system and gas-discharge headlights. |
| t
| Do not open any fuel line connections while the engine is running. |
| t
| Always switch off the ignition before connecting or disconnecting injection or ignition system wiring or tester cables. |
| t
| If engine is to be operated at cranking speed without it starting (e.g. compression test), unplug connectors from ignition coils and remove fuse for electric fuel pump. |
| t
| Certain tests may lead to a fault being detected by the control unit and stored. The fault memory should therefore be interrogated and (if necessary) erased after completing the tests and any repair work that may be required. |
| t
| Always switch off the ignition before cleaning the engine. |
| t
| Always switch off the ignition before connecting or disconnecting the battery, otherwise the engine control unit may be damaged. |
|
|
|
Note
