Removing and installing Lambda probeG39 and Lambda probe heaterZ19 before catalytic converter (engine code CBFA)
Removing and installing Lambda probe -G39- and Lambda probe heater -Z19- before catalytic converter (engine code CBFA)
Special tools and workshop equipment required

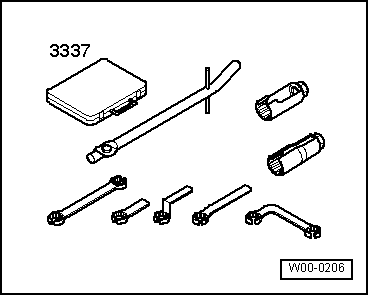

t  Lambda probe open ring spanner set -3337-
Removing Lambda probe
  W00-0206

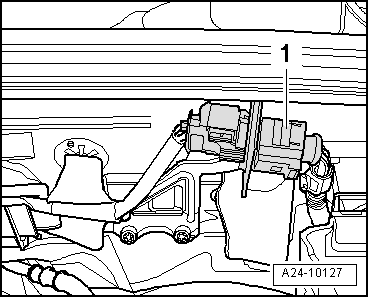

–  Unplug electrical connector -1- for Lambda probe -G39- and Lambda probe heater -Z19-.
  A24-10127

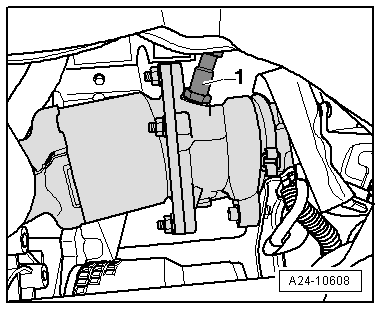

–  Unscrew Lambda probe -G39--1- using tool from Lambda probe open ring spanner set -3337-.
Installing Lambda probe
When installing, note the following:
  Note
t  Threads of new Lambda probes are already coated with assembly paste; the paste must not get into the slots on the probe body.
t  In the case of a used Lambda probe grease only the thread with high-temperature paste. The paste must not get into the slots on the Lambda probe body. High-temperature paste → Parts catalogue
t  When installing, the Lambda probe wire must always be reattached at the same locations to prevent it from coming into contact with the exhaust pipe.
l  Tightening torque: Lambda probe - overview → Chapter
  A24-10608
