Removing air cleaner (bottom section)
Removing air cleaner (bottom section)
Removing

–  Unscrew bolts -arrows- from air cleaner (top section).
–  Lift up air cleaner (top section) and take out air filter element.
–  Remove air duct leading from lock carrier to air cleaner housing -2 and 3-.
  A24-10429
–  Slacken bolt -1-.
–  Carefully lift air cleaner (bottom section).
Installing
To ensure the proper function of the air mass meter -G70- it is important to observe the following instructions.
  Note
t  If the air filter element is very dirty or wet, dirt or water could reach the air mass meter -G70- and affect the air mass value. This would lead to loss of power, since a smaller injection quantity is calculated.
t  Always use genuine part for air filter element.
t  Use a silicone-free lubricant when installing the intake hose.
t  Secure all hose connections with the correct type of hose clips (same as original equipment) → Parts catalogue
  A24-10429
–  Remove snow screen -1- and clean it.
  Note
The snow screen is not fitted on all vehicles.
  A24-10430
–  Clean water drain -arrow- and air cleaner (bottom section).
  A24-10431

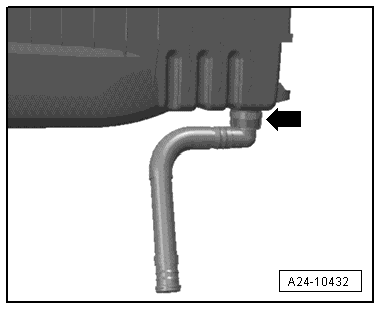

–  Disconnect water drain hose -arrow- from air cleaner (bottom section) and clean any dirt or leaves out of connection and hose.
–  When installing the air filter element, check that it is properly centred in the retainer in the air cleaner (bottom section).
–  Fit the top section of the air cleaner carefully on the bottom section, without using force. Make sure the top section of the air cleaner is fitted straight on the air filter element (note position of sealing lip on air filter element).
The remaining installation steps are carried out in the reverse sequence.
  A24-10432
