A3 Mk2

Removing and installing charge air pressure senderG31 with intake air temperature senderG42
Removing and installing charge air pressure sender -G31- with intake air temperature sender -G42-

Removing

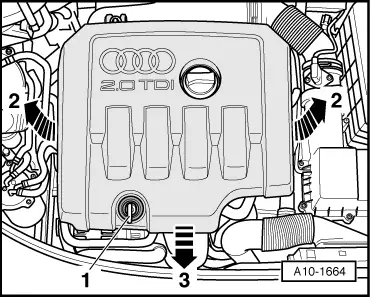

Engine cover panel (version 1):
–  Pull dipstick -1- out of guide tube.
–  Lift engine cover panel at sides -arrows 2- and pull off towards front -arrow 3-.
–  Re-insert dipstick in guide tube.
  A10-1664

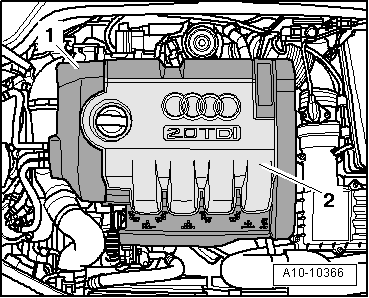

Engine cover panel (version 2):
–  Lift off engine cover panel (outside -1- and inside -2-) by pulling up evenly.
  A10-10366
Both versions:

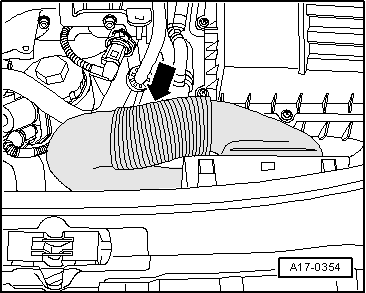

–  Remove air intake hose -arrow- from between lock carrier and air cleaner housing.
  A17-0354

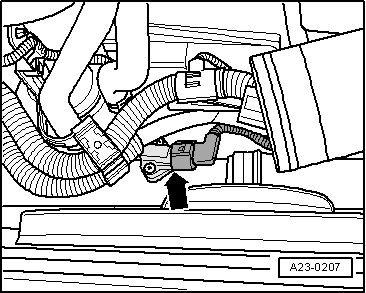

–  Unplug electrical connector -arrow-.
–  Unscrew two securing bolts.
Installing
Install in reverse order.
Tightening torque
  A23-0207
ComponentNm
Charge air pressure sender -G31- with intake air temperature sender -G42- to air pipe8
