Gearbox identification
Gearbox identification
The 6-speed manual gearbox 0A2, front-wheel drive is installed in the Audi A4 2001 ► and A4 Cabriolet 2003 ► in conjunction with the V6 TDI engine.
Allocation → Chapter.

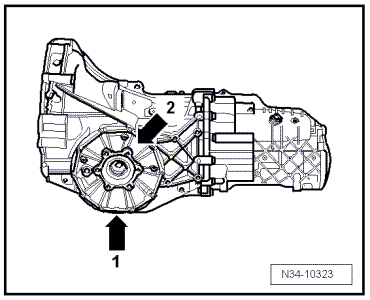

Location on gearbox
t  Code letters and serial number -arrow 1-
t  Manual gearbox 0A2 -arrow 2-
  N34-10323
Code letters and gearbox serial number -arrow 1-
  N34-10322
Example:GHA0000474
 II
 Code lettersGearbox serial number

Additional data are manufacture-related.
  Note
The code letters for the gearbox are also given on the vehicle data stickers.

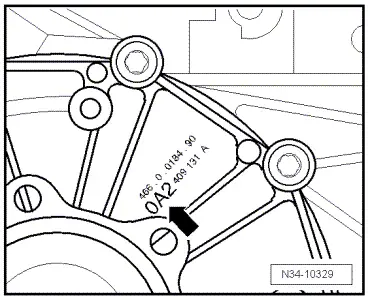

Manual gearbox 0A2 -arrow 2-
  N34-10329
