Gearbox identification
Gearbox identification
The 6-speed manual gearbox 0A3, four-wheel drive, is installed in conjunction with 4-cylinder, 6-cylinder and 8-cylinder engines in the A4 2001 ► and A4 Cabriolet 2003 ►.
t  Allocation, A4 → Chapter „Audi A4 2001 ► Code letters, allocation, transmission ratios, capacities“
t  Allocation, A4 Cabriolet → Chapter „Audi A4 Cabriolet 2003 ► Code letters, allocation, transmission ratios, capacities“

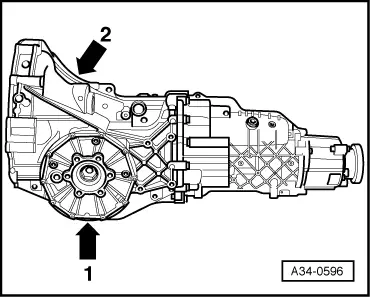

Location on gearbox
t  -Arrow 1- code letters, serial number and gearbox part number (if included) → Fig.
t  -Arrow 2- sticker with gearbox part number → Fig.
  A34-0596

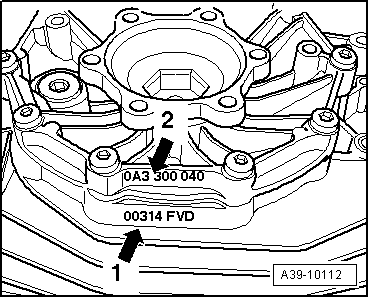

Code letters and gearbox serial number -arrow 1-
  A39-10112
Example:00314FVD
 Serial numberCode letters

Manual gearbox “0A3”-arrow 2-
with gearbox part number, e.g.  0A3 300 040.
  Note
The code letters for the gearbox are also given on the vehicle data stickers.

Manual gearbox “0A3”-arrow 2-
Sticker with gearbox part number (e.g.  0A3 300 040)
  A34-0598
