Rear final drive 0AR (Transmission layout): Technical data

Make

Audi

Model

A4 Cabriolet Mk2

Section

Rear final drive 0AR › Technical data › Transmission layout

Power transmissionTransmission layout

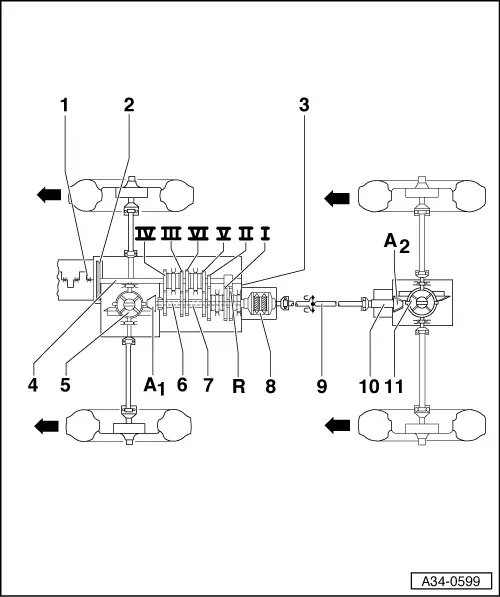

Transmission layout t  Illustrated with 6-speed manual gearbox 0A3, four-wheel drive

Identification

  Note

Arrows point in direction of travel

1 -

Engine

2 -

Clutch

3 -

Gearbox

4 -	Input shaft (main shaft)

5 -	Differential (front)

6 -	Front pinion shaft (output shaft)

7 -	Hollow shaft

8 -	Torsen differential

9 -

Propshaft

10 -	Rear pinion shaft

11 -	Differential (rear)

Ratio

  Note

Arrows point in direction of travel

I -

1st gear

II -

2nd gear

III -

3rd gear

IV -

4th gear

V -

5th gear

VI -

6th gear

R -	Reverse gear

A1 -	Final drive (front)

A2 -	Final drive (rear)
