A4 Cabriolet Mk2
| Oil filter bracket - exploded view |
| 1 - | Pipe |
| q | For crankcase breather |
| 2 - | Oil pressure switch -F1- |
| q | 1.4 bar - black |
| q | Checking → Chapter |
| q | Tightening torque 21 Nm |
| 3 - | 15 Nm |
| q | With earth wire for oil pressure switch |
| 4 - | Bracket |
| 5 - | 15 Nm |
| 6 - | Oil cooler |
| q | See note → Chapter |
| q | Ensure clearance from surrounding components |
| q | Diagram of coolant hose connections → Chapter |
| q | Removing and installing → Chapter |
| 7 - | Gasket |
| q | Renew |
| 8 - | 15 Nm |
| 9 - | Seal |
| q | Renew |
| q | Lubricate lightly with oil |

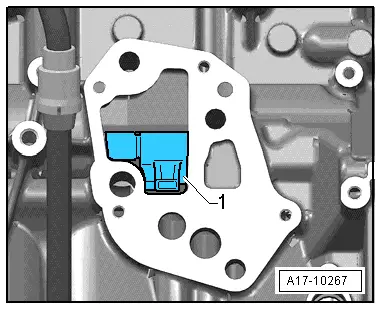

| q | Installation position → Fig. |
| 10 - | Screw plug |
| 11 - | Oil filter housing |
| q | Remove and install using oil filter tool -3417- or 36 mm socket, e.g. socket, 36 mm -T10125- |
| q | Draining → Chapter |
| 12 - | Oil filter element |
| q | Observe change intervals → Booklet803 |
| 13 - | Baffle plate |
| q | Installation position → Fig. |
| 14 - | Gasket |
| q | Renew |
| 15 - | Oil filter bracket |
| q | With pressure relief valve, approx. 4 bar |
| q | Removing and installing → Chapter |
| 16 - | Spring-type clip |
|
|
|
|
