Audi Workshop Service and Repair Manuals > A4 Cabriolet Mk2 > Power unit | 8-cylinder engine (4.2 ltr. 5-valve with timing chains), mechanics | Technical data

Engine number

Note

t	There is a sticker on the intake manifold (right-side) -arrow- showing the “engine code” and “serial number”.

t	The engine code is also included on the vehicle data sticker.

t	A number of steps are required to make the engine number visible.

–	Move lock carrier to service position → Chapter.

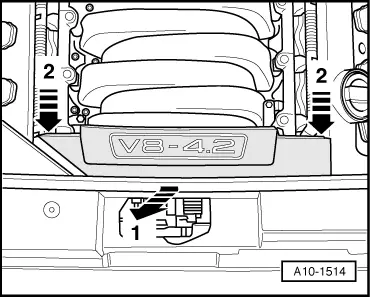

–	Detach the front engine cover panel -arrows 1 and 2-.

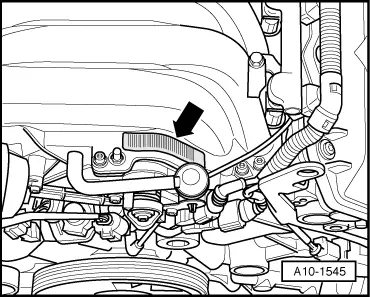

The engine number (“engine code” and “serial number”) can be found on top of the cylinder block at the front -arrow-.
