A4 Cabriolet Mk2

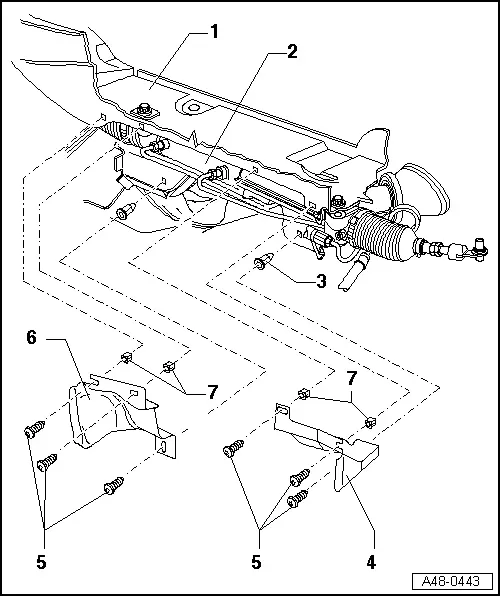

| Removing and installing heat shields |
| 1 - | Plenum chamber |
| 2 - | Power steering box |
| q | Illustration shows left-hand drive version |
| q | Right-hand drive version is the same with reversed positions |
| 3 - | Expanding nut |
| q | For correct version refer to → Parts catalogue |
| 4 - | Heat shield |
| q | On V6 TDI engines, remove starter catalytic converter → Rep. Gr.26 |
| q | On 6-cyl. and 8-cyl. petrol engines, remove front exhaust pipe → Rep. Gr.26 |
| q | For correct version refer to → Parts catalogue |
| 5 - | Self-tapping screw, 2 Nm |
| 6 - | Heat shield |
| q | For all vehicles |
| 7 - | Expanding nut |
| q | For correct version refer to → Parts catalogue |
