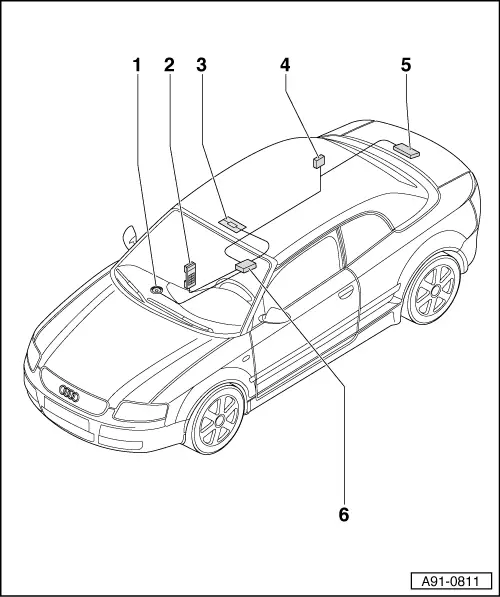

Overview of fitting locations

Overview of fitting locations
1 - Internal loudspeaker -R70-
q   Vehicles without radio
q   In dash panel (front centre)
q   Removing and installing → Chapter
2 - Telephone bracket -R126-
q   On centre console (top)
q   Connectors → Chapter
q   Removing and installing → Chapter
q   In centre armrest
q   Removing and installing → Chapter
3 - Telephone microphone -R38-
q   In front interior light -W1-
q   Removing and installing → Chapter
4 - Aerial amplifier for mobile telephone -R86-
q   Only on vehicles with mobile phone pre-installation
q   Connectors → Chapter
q   In luggage compartment, behind side trim (right-side) - up to MY 02
q   Removing and installing → Chapter
q   On rear partition panel for luggage compartment - from MY 03
q   Removing and installing → Chapter
5 - Telephone aerial -R65-
q   Behind boot lid trim
q   Overview → Chapter
q   Removing and installing → Chapter
6 - Telephone transmitter and receiver unit -R36-
q   In electronics box under front seat (right-side)
q   Connectors (fixed installation telephone) → Chapter
q   Removing and installing (fixed installation telephone) → Chapter
q   Connectors (mobile phone pre-installation) up to MY 02 → Chapter / from MY 03 onwards → Chapter
q   Removing and installing (mobile phone pre-installation) → Chapter
