A4 Mk1

General Body Assembly, Interior (Repair groups 68, 69, 70, 72, 74)
Seat belts
Removing and installing Recaro seat belt buckle

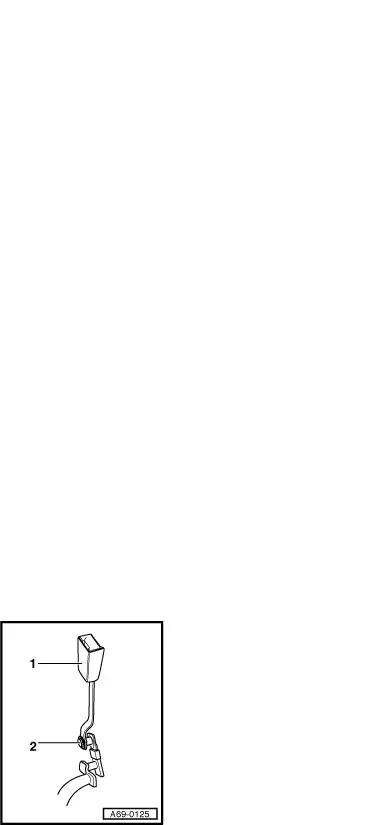

A69-0125
  • ‒ Remove seat
  • ‒ Swivel down belt buckle -1- to provide access to bolt -2-.
  • ‒ Release bolt -2-.
  • ‒ When tightening bolt -2- ensure a tightening torque of 60 Nm.
