• ◆ Removing:

Note:

The rear shelf does not have to be taken out in order to remove the rear belt adjuster.

• ‒ → Unfasten lower attachment point of rear three-point seatbelt. Tightening torque 50 Nm.

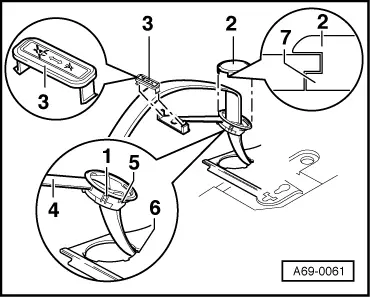

• ‒ Unclip belt guide trim -3-.
• ‒ Lever out belt adjuster trim -2- on left and right at tab -7-.
• ‒ Raise arm of belt adjuster -4- with webbing.

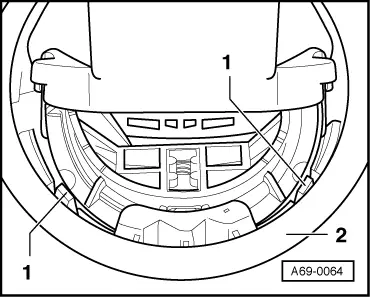

• ‒ → Use screwdriver to press retainer tabs -1- (2x) inwards and at the same time pull belt adjuster -2- upwards.
• ‒ Pull webbing through belt adjuster -2-.

• ◆ Installing:

• ‒ → Ensure that retainers -1- (2x) engage properly.
• ‒ Ensure that rear stud engages in recess -6-.
• ‒ Fitting guide -5- must face centre of vehicle.
