A4 Mk1
|
Gearbox identification
Gearbox identification
|
 |
|
|

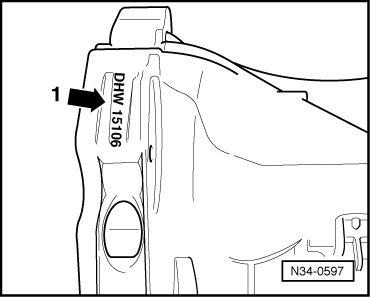

→ Location on gearbox Code letters and date of manufacture (arrow 1) |
 |
|
|
→ Manual gearbox 012 / 01W (arrow 2) |
 |
|||||||||||||||||||||
|
→ Code letters and date of manufacture of gearbox (arrow 1)
Additional data is production-related Note: The code letters of the gearbox are also given on the vehicle data plates. |
 |
|
|
→ Distinguishing features of magnesium gearboxes: The inscription >Mg Al 9 Zn 1< can be found in the vicinity of arrows 1 and 2 on gearboxes made of magnesium. The gearbox code letters also indicate whether a gearbox has a magnesium housing => from Page 00-3. |
