A4 Mk1

5-Speed Manual Gearbox 01A (4WD)
Rear final drive identification
Rear final drive identification

Final drive 01H is assigned to the manual gearbox 01A, four-wheel drive.

Allocation .

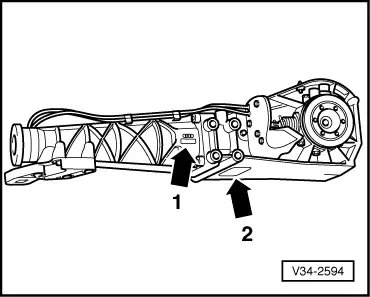

V34-2594

→ Location on final drive

  • ◆ Final drive 01H -arrow 1-
  • ◆ Code letters and date of manufacture -arrow 2-

V34-2595

→ Final drive 01H -arrow 1-

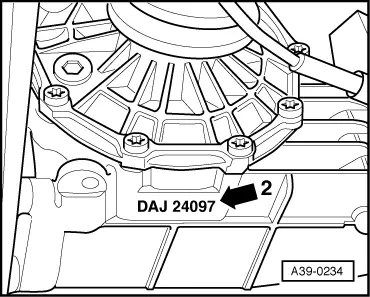

A39-0234

→ Code letters and date of manufacture of rear final drive -arrow 2-:

Example:

DAJ

24

09

7

I

I

I

I

Code letters

Day

Month

Year (1997)
of manufacture

Note:

The code letters for the rear final drive are also given on the vehicle data plates.
