Automatic Gearbox 01VFWD and 4WD (Gearbox identification): Technical data

The "automatic 5 gear gearbox 01V" is installed in connection with 4 and 6 cylinder engines in Audi A4 1995 ä Allocation =>Page 00-4.

Arrangement of ID plate on gearbox

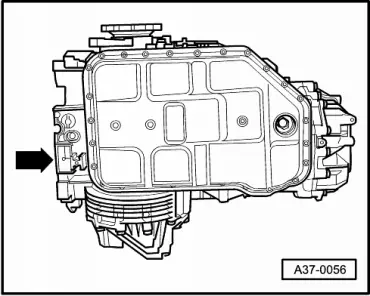

→ The coding of the gearbox is located on the ID plate on bottom of gearbox -arrow-.

On the side of the gearbox there is a further identical ID plate which is not accessible when gearbox is installed.

→ Code and serial number of the gearbox.

Serial gearbox number -arrow 1-
Gearbox marking -arrow 2-
Marking -arrow 3-

The code letters of the gearbox are also given on the vehicle data plates.
