Removing and installing V-belt
Removing and installing V-belt

Removing
l  Lock carrier must be in service position → Rep. Gr.50.

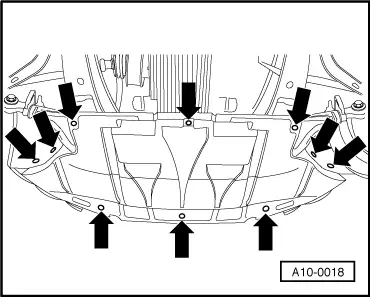

–  Release fasteners -arrows- and remove noise insulation.
  A10-0018
–  To slacken poly V-belt turn tensioner in direction of -arrow-.

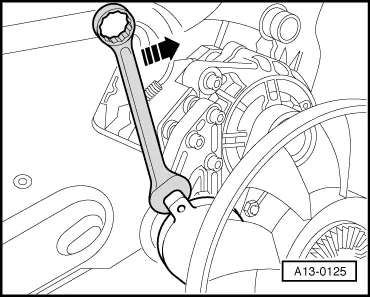

–  Remove poly V-belt from alternator pulley and release tensioner.
  A13-0125

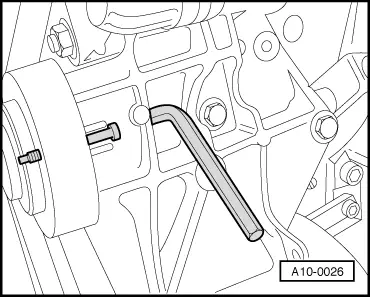

–  Use M5x60 mm bolt to lock poly V-belt pulley for viscous fan and unscrew using hexagon key.
  A10-0026
–  Remove V-belt pulley for coolant pump; apply drift -arrow- at power steering pump pulley.
–  Detach V-belt.
Installing
–  Installation is carried out in the reverse order; note the following:
–  Fit V-belt and secure the two pulley halves loosely to the coolant pump.
–  Tighten the two pulley halves in stages (continue to rotate coolant pump).
l  Whilst tightening, V-belt must move outwards as far as possible to actual resting surface.
  Note
It is not possible to adjust belt tension on coolant pump pulley.
–  Fit poly V-belt, slacken off tensioner.
–  Install viscous fan → Chapter.
–  Start engine and check that belts run properly.
–  Check tightening torque of coolant pump pulley bolts again.
Tightening torque → Chapter

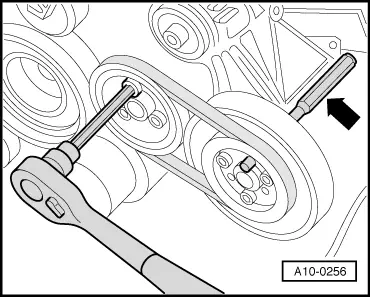

  A10-0256
