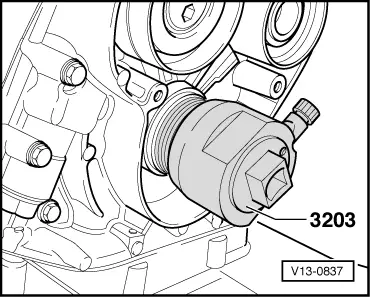

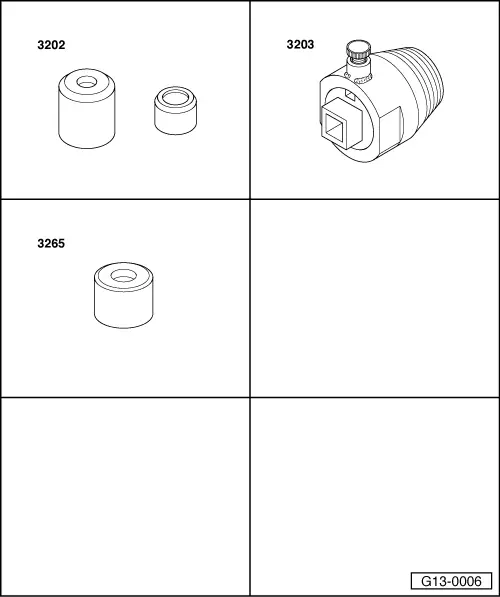

| Screw inner section of oil seal extractor -3203- six turns out of outer section and lock with knurled screw. |
| –
| Lubricate threaded head of oil seal extractor, place it in position and screw it into oil seal as far as possible (applying firm pressure). |
| –
| Loosen knurled screw and turn inner part against crankshaft until the oil seal is pulled out. |
| –
| Clamp flats of oil seal extractor in vice and use pliers to remove oil seal. |
| –
| Clean contact surface and sealing surface. |
Note | Do not lubricate sealing lip and outer rim of oil seal before pressing in. |
|
|
|
