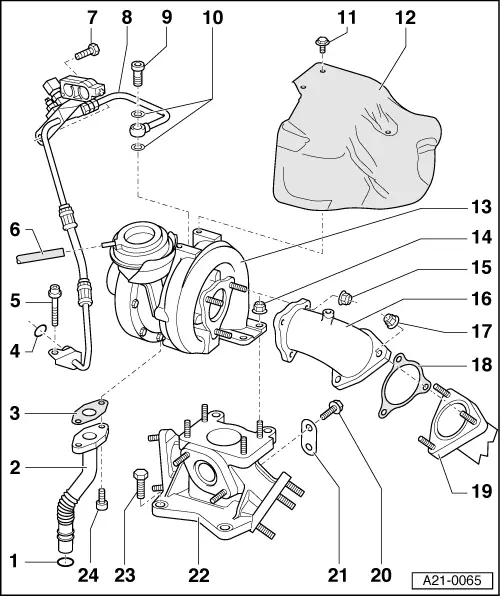

| Turbocharger - exploded view |
| 1 - | O-ring |
| q | Renew |
| 2 - | Oil return pipe |
| q | To cylinder block |
| 3 - | Gasket |
| q | Renew |
| 4 - | O-ring |
| q | Renew |
| 5 - | Bolt |
| q | 10 Nm |
| 6 - | Hose |
| q | To vacuum unit for charge pressure control |
| 7 - | Bolt |
| q | 22 Nm |
| 8 - | Oil supply pipe |
| q | From oil filter bracket |
| 9 - | Banjo bolt |
| q | 15 Nm |
| 10 - | Seals |
| q | Renew |
| 11 - | Bolt |
| q | 10 Nm |
| 12 - | Heat shield |
| 13 - | Turbocharger |
| q | Checking: vehicles with plug in intake manifold → Chapter, vehicles without plug in intake manifold → Chapter |
| q | Removing and installing → Chapter |
| 14 - | Nut |
| q | Renew |
| q | 22 Nm |
| 15 - | Nut |
| q | Renew |
| 22 Nm |
| 16 - | Connection |
| q | For turbocharger |
| 17 - | Nut |
| q | Renew |
| q | 25 Nm |
| 18 - | Gasket |
| q | Renew |
| 19 - | Front exhaust pipe with catalytic converter |
| q | Removing and installing: vehicles with front-wheel drive → Chapter, vehicles with four-wheel drive → Chapter. |
| 20 - | Bolt |
| q | 22 Nm |
| 21 - | Support |
| q | For intermediate flange |
| 22 - | Intermediate flange |
| q | Removing and installing → Chapter |
| 23 - | Bolt |
| q | 22 Nm |
| 24 - | Bolt |
| q | 10 Nm |
