A4 Mk1

Running gear, Front-wheel drive and four-wheel drive
Mounting bracket
Replacing front and rear upper link bush

Special tools and workshop equipment required

  • ◆ 3301 Assembly device
  • ◆ 3301/1 from assembly device
  • ◆ 3301/3 from assembly device
  • ◆ 3348/2 from assembly device
  • ◆ 3348/3 from assembly device

Replacement of upper links or bushes involves removing mounting bracket .

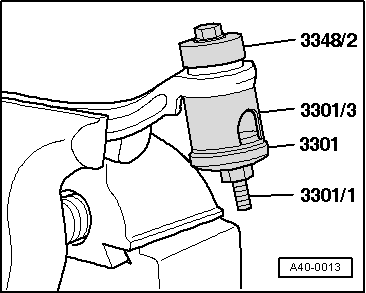

A40-0013

Note:

  • ◆ Use soft jaws for clamping aluminium links.

→ Extracting bush

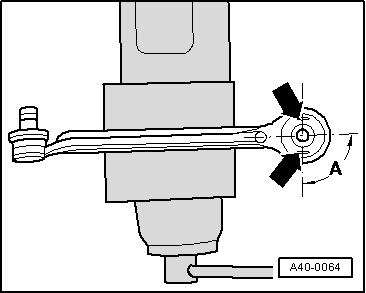

A40-0064

→ Installation position of bush

  • A =90° ±5°

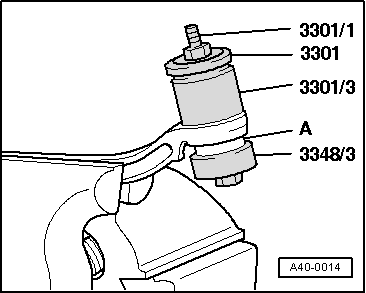

A40-0014

→ Fitting bush
