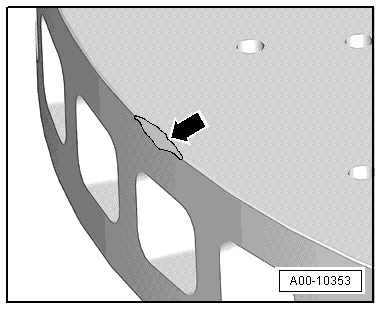

| Edge fractures -arrow- are caused by mechanical damage to the edges. |
| t
| max. width / depth = 2 mm |
| t
| max. 3 edge fractures per brake disc |
| If any of the criteria listed above are exceeded, the brake disc must be renewed. |
| Always renew brake discs on both sides of axle if: |
| t
| renewal is necessary because of brake disc wear |
| t
| there has been a technical modification to the replacement brake disc (indicated by changed part number). |
| Always renew brake discs on both sides of axle → Chapter. |
| When doing so, always renew the brake pads on both sides of the vehicle → Chapter. |
|
|
|
