A4 Mk2
| Servicing clutch mechanism |
Caution
|
Note| t | Lubricate all bearings and contact surfaces with polycarbamide grease -G 052 142 A2-. |
| t | Before working on pedal cluster, remove storage compartment on driver's side → General body repairs, interior; Rep. gr.68. |
| t | Make sure that no brake fluid escapes into the footwell, the plenum chamber or onto the gearbox below. If this does happen, clean the affected area thoroughly. |
| t | When performing work in the footwell, put cloths on the carpet to protect it from possible brake fluid spills. |

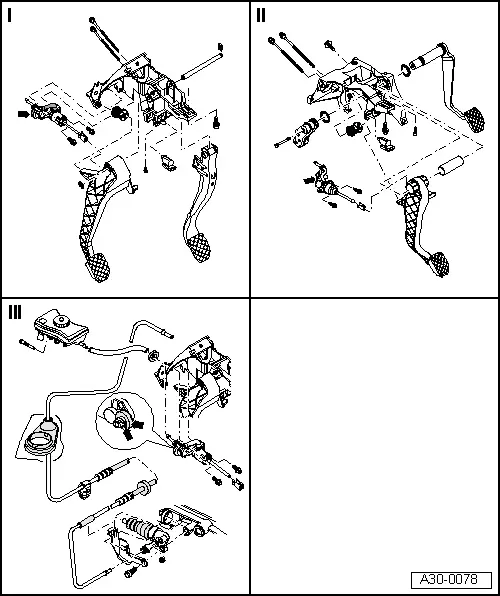

| I - | Pedal cluster (LHD vehicles) |
| t | → Chapter „Exploded view - pedal cluster (LHD vehicles)“ |
| t | → Chapter „Removing and installing clutch pedal switch -F36-“ |
| t | → Chapter „Removing and installing clutch pedal switch for engine start -F194-“ |
| t | → Chapter „Removing and installing over-centre spring“ |
| II - | Pedal cluster (RHD vehicles) |
| t | → Chapter „Exploded view - pedal cluster (RHD vehicles)“ |
| III - | Clutch hydraulics |
| t | → Chapter „Exploded view - hydraulic system“ |
| t | → Chapter „Notes on removing and installing clutch master cylinder and slave cylinder“ |
| t | → Chapter „Function check for clutch master cylinder and slave cylinder“ |
| t | → Chapter „Removing and installing clutch master cylinder“ |
| t | → Chapter „Bleeding clutch system“ |
