A4 Mk2

Rear final drive identification
Rear final drive identification
The rear final drive 08V is installed in conjunction with the following gearbox types:
t  6-speed manual gearbox 02X
t  6-speed manual gearbox 0A3
t  Automatic gearbox 09L, four-wheel drive
t  Automatic gearbox 01V, four-wheel drive
l  Allocation → Chapter „Code letters, allocation, transmission ratios, capacities: Audi A4 2001 ►, Cabriolet 2003 ►“
l  Allocation → Chapter „Code letters, allocation, transmission ratios, capacities: Audi A6 2005 ►“

Location on rear final drive

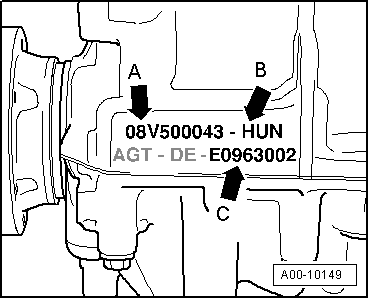

Final drive 08V, code letters and date of manufacture -arrow-
  A00-10147
-Arrow A- Final drive 08V with Part No. (in this example 08V 500 043)
-Arrow B- Code letters “HUN”
-Arrow C- Manufacturing data of rear final drive
  A00-10149
Example:E0963002
 III
 Year of manufacture -2005-
E = 2005,
F = 2006,
G = 2007,
H = 2008 ...		Day of manufacture
-96th day of year-
(always specified in three digits)		Serial number on day of manufacture

Other information can be disregarded.
  Note
When installing a new rear final drive unit, it is important to verify not only the code letters of the final drive but also the PR No. and the engine code of the vehicle in the → Electronic parts catalogue. This is necessary to ensure that the correct version is installed.
