A4 Mk2

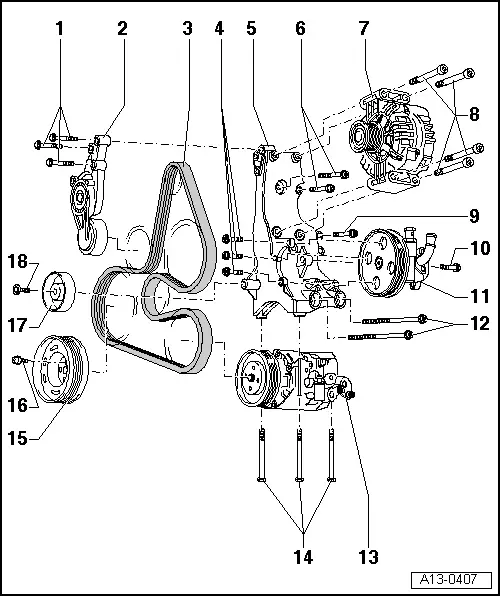

| Poly V-belt for alternator, power steering pump and air conditioner compressor |
| 1 - | 25 Nm |
| 2 - | Tensioner |
| 3 - | Poly V-belt |
| q | Check for wear |
| q | Before removing, mark direction of rotation with chalk or felt-tipped pen. If the belt runs in the opposite direction when it is refitted, this can cause breakage. |
| q | Removing and installing → Chapter |
| q | When installing, make sure it is properly seated on pulleys. |
| 4 - | 25 Nm |
| 5 - | Bracket for ancillaries |
| q | Removing and installing → Chapter |
| 6 - | 40 Nm |
| q | Install using locking fluid; for locking fluid refer to → Parts catalogue |
| 7 - | Alternator |
| q | Removing and installing → Electrical system; Rep. gr.27 |
| 8 - | 20 Nm |
| 9 - | 40 Nm |
| 10 - | 20 Nm |
| 11 - | Power steering pump |
| q | Removing and installing → Running gear, front-wheel drive and four-wheel drive; Rep. gr.48 |
| 12 - | 40 Nm |
| 13 - | Air conditioner compressor |
| q | On installation, pay attention to dowel sleeves in bolt holes |
| 14 - | 25 Nm |
| 15 - | Vibration damper/pulley |
| q | Can only be installed in one position |
| q | Removing and installing → Chapter |
| 16 - | Flange bolts 10 Nm + 90° (1/4 turn) further |
| q | Renew → Parts catalogue |
| 17 - | Idler roller |
| q | Secured to bracket for ancillaries |
| 18 - | Special bolt, 25 Nm |
| q | For idler roller |
| q | Renew → Parts catalogue |
