A4 Mk2
Power unit
4-cylinder TDI unit injector engine (1.9 ltr.; 2.0 ltr. 2-valve), mechanics
Enginecrankshaft group, pistons
Pistons and conrods
Different versions of conrods and conrod bolts
Different versions of conrods and conrod bolts
Different versions of conrods and conrod bolts
t
Allocation of correct conrod version
→ Electronic parts catalogue
.
t

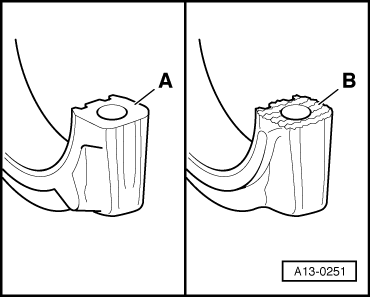

Distinguishing features of sawn and cracked conrods:
A -
Sawn conrods = smooth joint surface
B -
Cracked conrods = rough mating surface (produced by industrial cracking process)
