Different types of glow plugs
Different types of glow plugs
Different types of glow plugs can be installed in 4-cylinder 2-valve TDI engines in Audi A4 vehicles.
Engine codes AVB, AVF, AWX, BRB
t  These engines are fitted exclusively with metal glow plugs.
Engine codes BKE, BPW, BRC

t  These engines can be fitted with either metal or ceramic glow plugs.

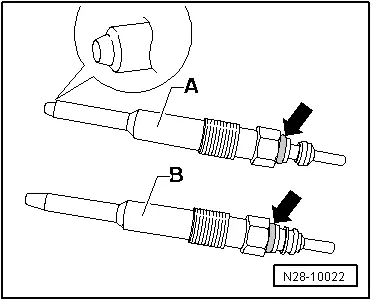

A - Bosch ceramic glow plugs are colour-coded with a “white seal”-arrow- and have a chamfered shoulder (⇒ detail view) at the tip.
A - NGK ceramic glow plugs are colour-coded with a “white seal (on some versions painted over in silver)”-arrow- but do not have a chamfered shoulder at the tip.
B - Metal glow plugs are colour-coded with a “red seal”-arrow-.
  Caution
Important: Always observe the special instructions for handling ceramic glow plugs. The metal glow plugs do not require any special handling procedures.
  N28-10022
