Removing and installing engine oil cooler
Removing and installing engine oil cooler
Removing
–  Drain off coolant → Chapter.
–  Remove intake manifold (top section) → Rep. gr.23.
–  Remove bottom section of intake manifold (left and right) → Rep. gr.23.
–  Remove toothed belt for high-pressure pump → Rep. gr.23.
–  Remove high-pressure pump → Rep. gr.23.
–  Remove exhaust gas recirculation cooler → Chapter.

–  Spread out rags round engine oil cooler to catch escaping oil.

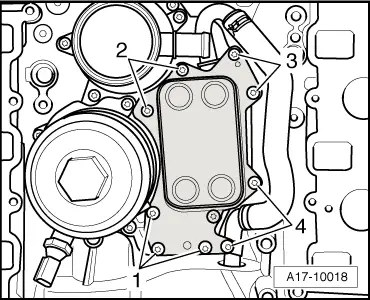

–  Remove bolts -1 … 4- and detach engine oil cooler.
Installing
Installation is carried out in the reverse order; note the following:
  Note
Renew seals and O-ring for top coolant pipe.
–  Install exhaust gas recirculation cooler → Chapter.
–  Install high-pressure pump → Rep. gr.23.
–  Install toothed belt for high-pressure pump → Rep. gr.23.
–  Install bottom section of intake manifold (left and right) → Rep. gr.23.
–  Install intake manifold (top section) → Rep. gr.23.
–  Fill up with engine oil and check oil level → Booklet803 or → Booklet805.
–  Fill cooling system → Anchor.
Tightening torques
  A17-10018
ComponentNm
Engine oil cooler to mounting plate9
Coolant pipe (top) to engine oil cooler9
