Unplugging electrical connector at coolant temperature display senderG2 - vehicles with 4.2 ltr. MPI engine to 05.2005 - Audi S4

Unplugging electrical connector at coolant temperature display sender -G2- - vehicles with 4.2 ltr. MPI engine to 05.2005 - Audi S4

Procedure

–	Pull off engine cover (rear) -arrows-.

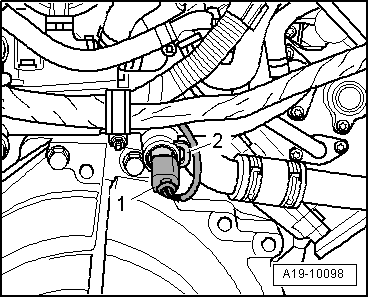

–	Unplug electrical connector -1- at coolant temperature display sender -G2-/-G62-.

Note

Illustration shows engine removed for greater clarity.

Install in reverse order.
