Unplugging electrical connector at coolant temperature sender G62 - vehicles with 2.0 ltr. TFSI engine > < Unplugging electrical connector at coolant temperature display sender G2 - vehicles with 2.5 ltr. TDI engine

A4 Mk2

Pin assignment at coolant temperature senderG62
Pin assignment at coolant temperature sender -G62-
Preparations
–  Unplug electrical connector at coolant temperature sender -G62-:
t  Vehicles with 2.0 ltr. TFSI engine → Chapter
t  Vehicles with 3.2 ltr. FSI engine → Chapter.
t  Vehicles with 4.2 ltr. MPI engine from 06.2005 - Audi S4 → Chapter
t  Vehicles with 4.2 ltr. FSI engine - Audi RS4 → Chapter
t  Vehicles with 2.0 ltr. TDI engine → Chapter.
t  Vehicles with 2.7 ltr. or 3.0 ltr. TDI engine → Chapter.

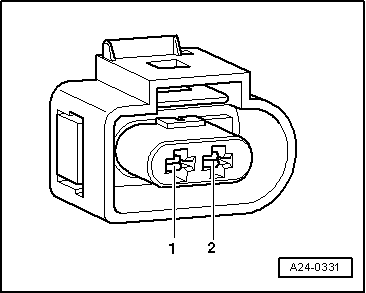

Pin assignment for 2-pin connector at coolant temperature sender -G62-
1 - Sender earth
2 - Wiring connection from coolant temperature sender -G62- to engine control unit
  A24-0331
