A4 Mk2

Removing and installing radio controlled clock receiverJ489
Removing and installing radio controlled clock receiver -J489-

Removing
–  Remove rear bumper cover → Rep. Gr.63.

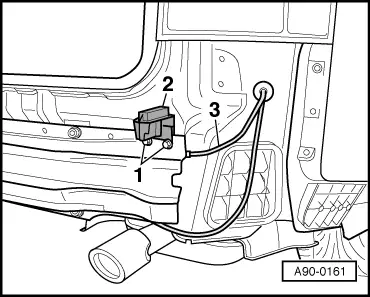

–  Unplug electrical connector for wire -3- at radio controlled clock receiver -J489--item 2-.
–  Unscrew bolts -1- and detach radio controlled clock receiver -J489-.
Installing
Installation is carried out in the reverse order; note the following:
–  Install rear bumper cover → Rep. Gr.63.
  A90-0161
